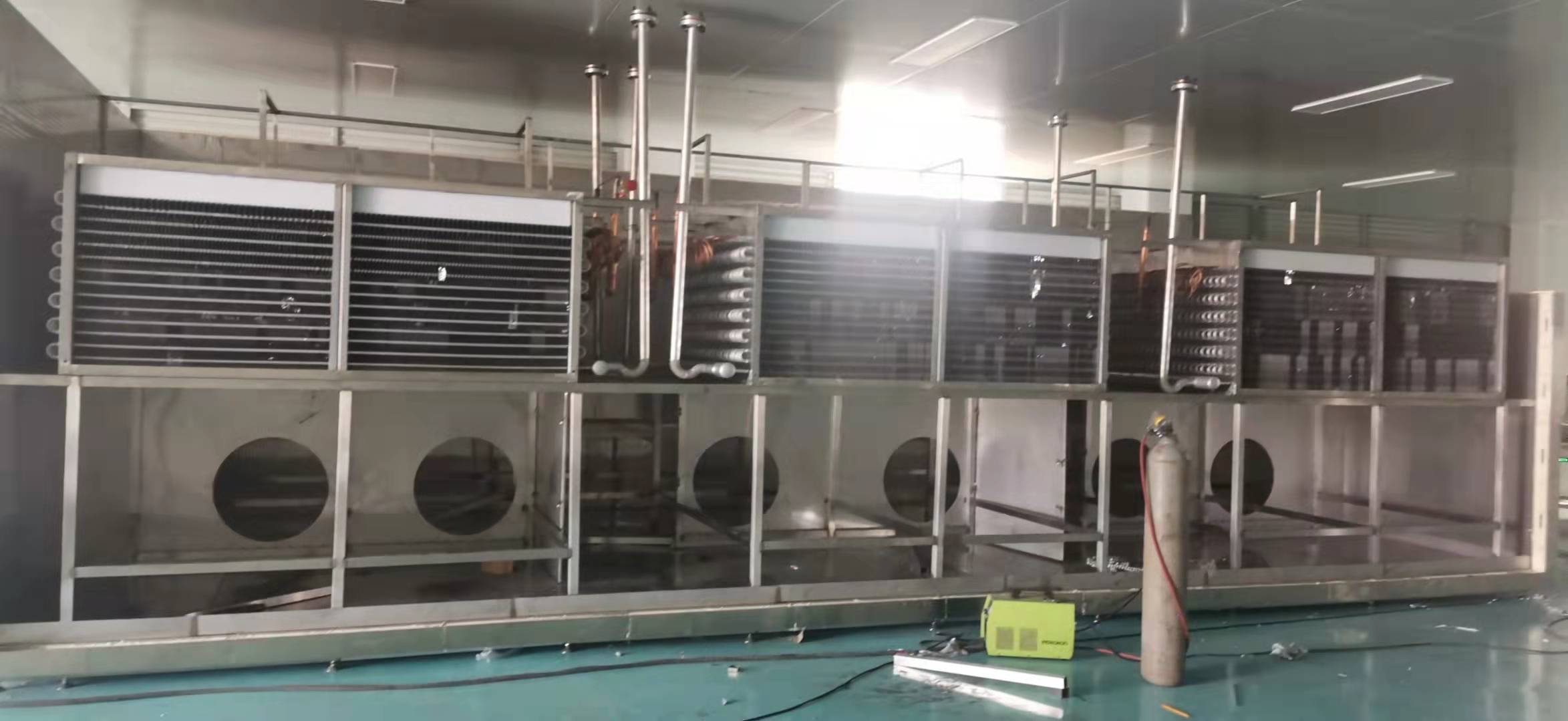

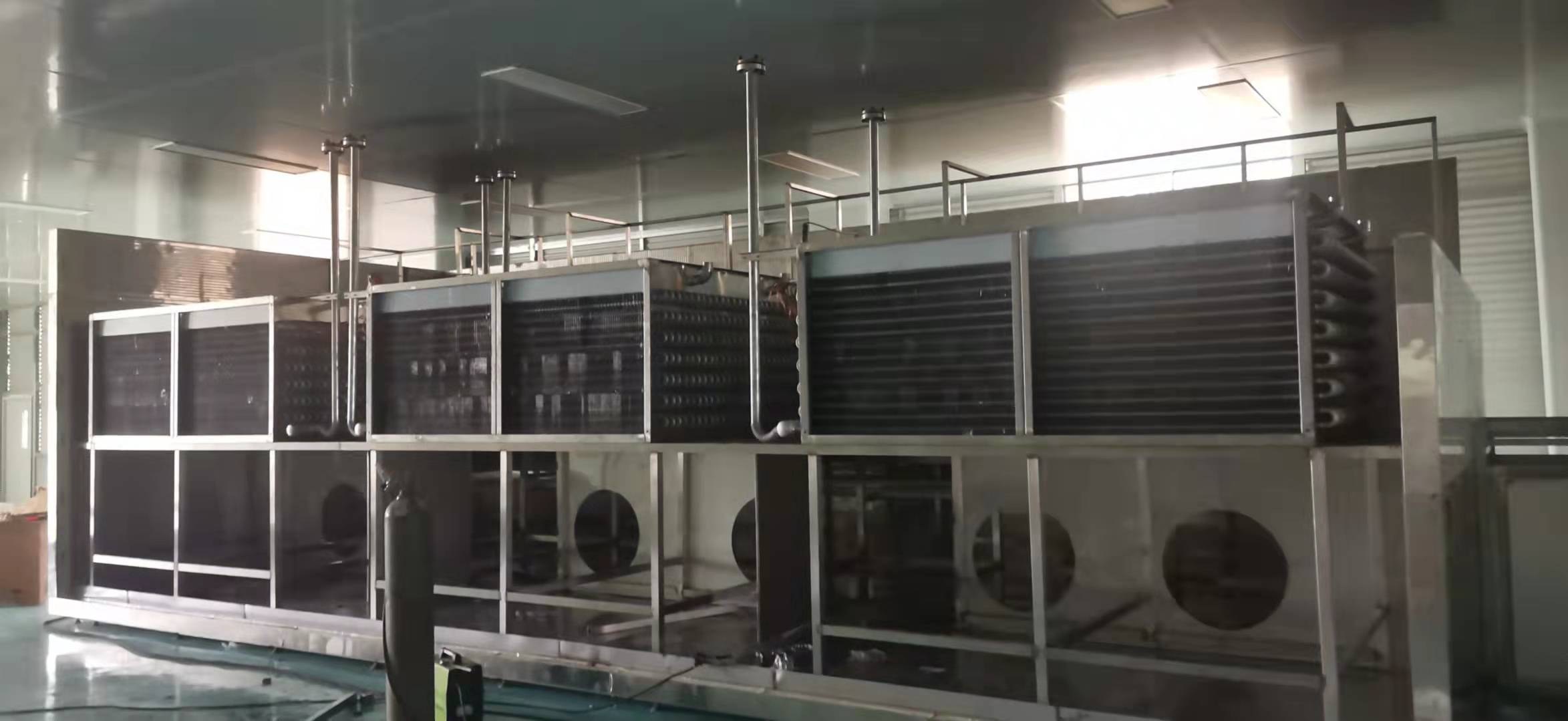

IFQ Fluidized Quick Freezer

The pre-cooled fruits and vegetables are evenly distributed on the stainless-steel mesh belt of the quick-freezer through the vibrating distributor. When the fruits and vegetables enter the quick-freezer, under the action of the strong wind blowing from the bottom up, the food layer begins to loosen, and the food particles no longer remain stationary. Part of the particles are suspended upwards, causing the food layer to expand, and the green gaps increase. At the same time, the food particles jump up and down to form a fluidized bed (that is, suspended).

In the suspension state, the frozen product is uniformly stressed at the same time, so that the frozen product can quickly
complete the three stages of freezing, surface freezing and deep freezing in a short time, so as to obtain high-quality individual frozen products.

Product Feature:

1. Rapid preservation: It is a new type of rapid freezing device with energy-saving food preservation.
2. Frozen products do not agglomerate: fully meet the I.Q.F. standard advantages.
3. Excellent quality of frozen products: strong air convection is adopted, and the freezing speed is fast, thus ensuring the
quality of frozen products.
4. Heat transfer efficiency: using large sets of all-aluminum evaporators, high heat transfer coefficient; and equipped with
specially developed special fans for low-temperature cold storage, high wind pressure, moderate and reasonable airflow.
5. High degree of hygiene: very convenient for cleaning and maintenance.
6. Low energy consumption and low noise: The heat transfer effect of the special fan for energy-saving cold storage and the all-aluminum evaporator is adopted, which saves energy.
7. Less frosting times: the use of a complete set of films, variable film spacing, low frosting rate, 12 hours of continuous work without frosting becomes possible.
8. A wide range of frozen products: all fruits and vegetables of different shapes can be frozen, and can be equipped with trolley pan-shaped foods to achieve a multi-purpose IQF quick-freezer
9. High freezing efficiency and many types of frozen products
10. Realize the overall quick freezing of food
11. Adopt high-pressure fan technology, evaporator edge sheet distance meter, low energy consumption
12. The mesh belt adopts frequency conversion adjustment and time indicator to realize precise processing
13. Use continuous cleaning. Drying device, clean and hygienic
14. Realize fast freezing at -32°c temperature
15. The frosting interval is long to ensure the continuity of production
